SmallHD Cine 7 ARRI Kit
SmallHD Cine 7 ARRI Kit

SmallHD Cine 7 ARRI Kit

2'599.00 CHF
2'809.50 CHFincluso.8.1% IVA
Articolo n.
161.MON-CINE7-ARRI
Articolo n.
12 Monate
Disponibilità
non disponibile (Lieferbar in 2-3 Wochen)

Cine 7 Monitor ARRI Kit



Full HD 7-Zoll Touchscreen Monitor mit DCI-P3 Color und 1800 nits Helligkeit



Professioneller Kameramonitor mit Kamerasteuerungssoftware für ARRI.



Lieferumfang:


• Monitor
• Sunhood
• Dtap to Lemo Cable
• Screen Protector
• SD Card
• Cleaning Cloth
• Lemo to Ethernet Cables
• ARRI Camera Control Software License
• Ethernet Cable



Spezifikationen

Display

Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920x1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Contrast 1000:1
Color Gamut 100% DCI-P3 Coverage
Color Depth 8-b Panel with 10-b Scopes
Viewing Angle 8-b Panel with 10-b Scopes
Backlight Type LED
Adjustable Backlight Yes

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle

Controls

Primary Control Interface Touch Screen
Record/Capture Capture Tool
RF Wireless Remote / External Control ?

Data I/O

Storage ?
USB ?
Wireless ?

Power

Connector Type Lemo
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Height 4.67" (11.86cm)
Width 1.32" (3.35cm)
Depth/Length 7.09" (18.01cm)
Weight (Packaged) 45oz (1275.73g)
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Software

Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel

Bebob V-micro battery 14.4V / 6,8Ah / 98Wh

Bebob 2-Channel Vmicro simult. Charger

Hawk-Woods LR-08 - Power-con (male) - 45cm - NPF dummy battery - Small HD only

Wooden Camera - SmallHD 1/4-20 to 3/8-16 ARRI Accessory Mount Adapter

SmallHD D-Tap to Sony L-Series Faux Battery

SWIT S-8975 | 75Wh/10.4Ah  NP-F-type (Sony L-series) DV battery with DC-pole in/output

SmallHD Neoprene Sleeve for 7 in. - 9 in. Monitors
non disponibile (Lieferbar in 2-3 Wochen)

SmallHD Neoprene Sleeve for 7 in. - 9 in. Monitors

161.ACC-SLEEVE-9

40.00 CHF

Orca Hard Shell Monitor (7") Bag / case with integrated hood

SmallHD 7-inch C-Stand/Table Stand Mount
non disponibile (Lieferbar in 2-3 Wochen)

SmallHD 7-inch C-Stand/Table Stand Mount

161.ACC-MT-7-TBLSTAND

90.00 CHF

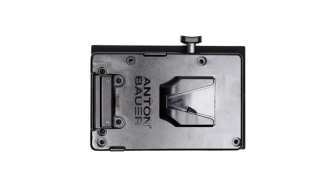

SmallHD V Mount Plate for 702 Touch & Cine 7
non disponibile (Lieferbar in 2-3 Wochen)

SmallHD V Mount Plate for 702 Touch & Cine 7

161.PWR-ADP-C7T-VM

150.00 CHF

SmallHD Monitor Handles + Neck Strap

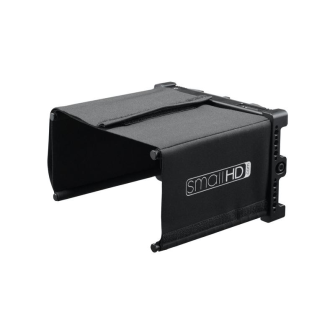

SmallHD SMART 7 SUNHOOD
non disponibile (Lieferbar in 2-3 Wochen)

SmallHD SMART 7 SUNHOOD

161.ACC-HOOD-SMART7

150.00 CHF

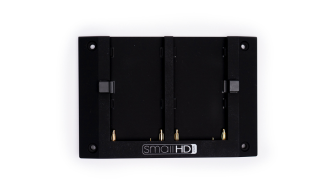

SmallHD Sony L series Plate for 702 Touch & Cine 7
