Das System setzt auf die AV-Leistungsfähigkeit von Mobilgeräten, die jeder täglich dabei hat. Die Verbinung erfolgt über WiFi und ermöglicht völlig neue Möglichkeiten für kreatives Livestreaming – von Online-Talkshows und -Konzerten bis zu Live-Shopping, Fernunterricht und mehr.
Leistungsstarke kabellose Produktionslösung mit iPad-App
Schalte simultan Bilder von vier kabellos verbundenen Geräten und der Kamera des Host-iPads um
Unterstützung iOS & Android
Kabelloses Screen-Sharing von Computern und Mobilgeräten über Google Chrome Webbrowser
Wechsle zwischen Kameras, Medien und Szenen mit einer Vielzahl von Übergangseffekten
Speichern sowie Abrufen von 30 Szenen wie Titeln, Grafiken und Bild-in-Bild-Fenstern
Medienpool von Video, Audio, Fotos und Grafiken aus dem eigenen iPad
Streame direkt auf YouTube, Facebook Live, Twitch und RTMP-Kanäle über Wi-Fi oder 4G/5G Netze
Intuitive Hardware-Steuerungsoberfläche und Audio Interface mit zwei XLR-Eingängen, 3,5 mm Stereoeingang sowie Kopfhörer- und Monitorausgängen

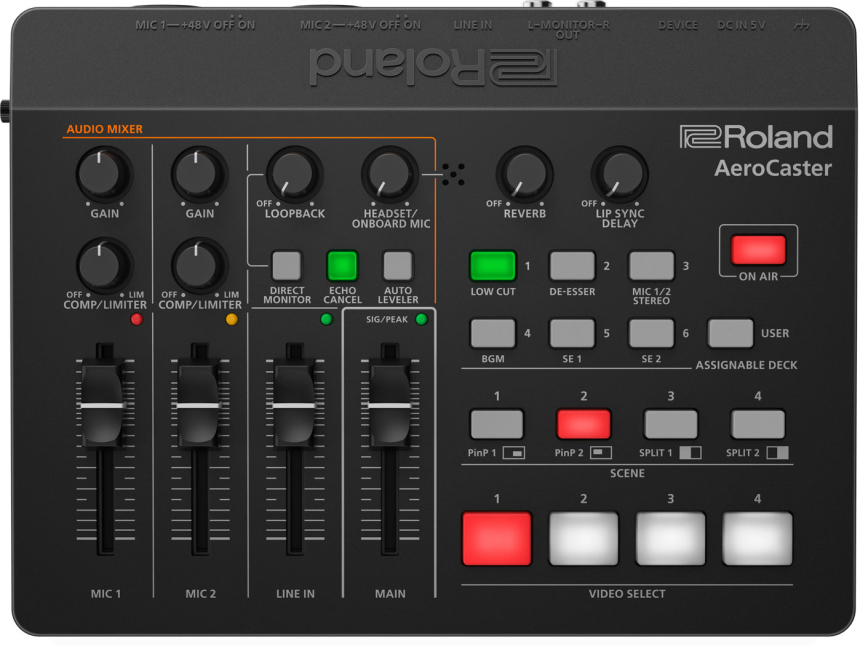

AEROCASTER VRC-01
Connectors
MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type
PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type)
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R)
Controller
MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob
MIC 1 +48V switch
MIC 2 +48V switch
Indicator
POWER
DEVICE
SIG/PEAK
Nominal Input Level
MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)
Input Impedance
MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms
USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power
Current Draw
700 mA (AC adaptor)
500 mA (USB bus power)
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches
Weight (without cables)
600 g
1 lb 6 oz
Accessories
Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable
* 0 dBu = 0.775 Vrms
AEROCASTER LIVE
Video Input
Satellite camera
Browser source
Built-in camera (iPad).
* 5 inputs in total
* Satellite cameras can be used with AeroCaster Camera or Web browser.
* Need to install the “AeroCaster Camera” App on your iPhone and Android Phone.
* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.
* Codec:H.264 Bitrate:Up to 20Mbps
Video Processing
RGB 4:4:4, 8-bit
1080/60p
* Depends on iPad internal processing
* Video input will be converted automatically.
Input Formats
Up to 1080/30p
* Automatically adjusts resolution and frame rate according to network bandwidth.
Output Formats
Up to 1080/60p
* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter.
Still image and video and audio playback
Up to 100.
* Use still images and videos saved in the iPad.
* File format conforms to iOS Photo Library.
* PNG alpha channel supported.
* Support mp4(aac), m4a(aac), mp3, wav as audio source.
Scene
Up to 30.
* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered.
YouTube Live
Facebook Live
Twitch
* Custom RTMP supported
Recording
Format : MP4 (H.264/AAC)
Bitrate : 1Mbps〜10Mbps
Other Functions
(Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)
* Depends on smart phone or tablet
OPERATING CONDITIONS
AeroCaster LIVE (for iPad)
Operating System:
iOS 14 or later
CPU:
Apple A12 processor or better (A12Z or better is recommended)
AeroCaster Camera (for iPhone, iPad)
Operating System:
iOS 13 or later
CPU:
Apple A10 processor or better (iPhone 7 or higher recommended)
AeroCaster Camera (for Android)
Operating System:
Android 10 or later
CPU:
Models with H.264 hardware encoder
Others:
Screen resolution 1280x720 or higher
Equipped with two or more cameras in front and rear
