RED V-RAPTOR® 8K VV + 6K S35 (Dual Format)
22'495.50 CHF24'317.65 CHF inkl. 8.1% MwSt
8K VV 35.4 Megapixel CMOS
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
Artikel-Nr.
125.710-0342
Garantiezeit
24 Monate
Verfügbarkeit
Nicht an Lager (Lieferbar in 2-3 Wochen)
RED V-RAPTOR
Die V-RAPTOR ST 8K VV ist die leistungsstärkste und fortschrittlichste RED-Kinokamera aller Zeiten. Als neues Flaggschiff und Sensor der Marke sowie als erster Vertreter der neuen DSMC3-Kamerageneration steht die V-RAPTOR an der Spitze der digitalen Bilderfassungstechnologie.
Ausgestattet mit einem bahnbrechenden 8K-Multiformat-Sensor - mit der Möglichkeit, 8K-Großformat- oder 6K-S35-Aufnahmen zu machen - bietet sie die größte Objektivauswahl aller vergleichbaren Kameras auf dem Markt und ermöglicht es den Kameraleuten, immer mit über 4K zu drehen. Der Sensor verfügt außerdem über den höchsten Dynamikbereich aller RED-Kameras und die schnellste Scan-Zeit in Kinoqualität. Mit einem Dynamikbereich von über 17 Blendenstufen und einer doppelt so schnellen Scanzeit wie bei allen bisherigen RED-Kameras können Anwender bis zu 600 Bilder pro Sekunde bei 2K aufnehmen. Die V-RAPTOR wird auch weiterhin mit dem RED-eigenen REDCODE RAW-Codec ausgestattet sein, der es Anwendern ermöglicht, 16-Bit-RAW-Aufnahmen zu machen und REDs neuesten IPP2-Workflow und Farbmanagement zu nutzen.
Zusammen mit einem neuen Flaggschiff-Sensor bietet die V-RAPTOR eine modernisierte Plattform in einem erstaunlich kompakten Gehäuse mit einem Gewicht von knapp über 4 Pfund. Mit 2 4K 12G-SDI-Ausgängen, XLR-Audio und Phantomspeisung über einen Adapter sowie 1080p-Livestream ist dieses System für fast alles gerüstet, was ein Shooter braucht.
V-RAPTOR
| SENSOR TYPE | V-RAPTOR™ 8K VV 35.4 Megapixel CMOS | |||
|---|---|---|---|---|
| EFFECTIVE PIXELS | 8192 x 4320 | |||
| SENSOR SIZE | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) | |||
| DYNAMIC RANGE |
17+ stops
|
|||
| MOUNT TYPE |
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters Accepts other Canon RF mount-based lens adaptors for diverse lens choices |
|||
| MAX DATA RATES |
Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
|
|||
| REDCODE® RAW MAX FRAME RATES |
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
|||
| BEST AVAILABLE REDCODE® SETTINGS |
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps |
|||
| REDCODE® RAW ACQUISITION FORMATS |
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 |
|||
| CONSTRUCTION | Aluminum Alloy | |||
| WEIGHT | 4.03 lbs (without body cap and CFexpress card) | |||
| BATTERY TYPE | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1] | |||
| DC POWER INPUT | 11-17V via 6-pin DC-IN | |||
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) | |||
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) | |||
| STORAGE RELATIVE HUMIDITY |
0% to 85% non-condensing
|
|||
| COLOR MANAGEMENT |
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs Supports import of CDLs |
|||
| AUDIO |
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz |
|||
| REMOTE CONTROL |
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
|
|||
| MONITOR OUTPUTS |
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
|||
| MONITOR OPTIONS |
DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video) |
|||
| RED CONTROL |
Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C |
|||
1. For more information on compatible accessories, go to red.com/third-party-accessories
Tech specs reflect both current and projected information. Everything is subject to change.
| SENSOR TYPE |
V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
|
|---|---|
| EFFECTIVE PIXELS |
8192 × 4320
|
| SENSOR SIZE |
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
|
| DYNAMIC RANGE |
17+ stops
|
| MOUNT TYPE |
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
|
| MAX DATA RATES |
Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
|
| REDCODE® RAW MAX FRAME RATES |
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
|
| BEST AVAILABLE REDCODE® SETTINGS |
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
|
| REDCODE® RAW ACQUISITION FORMATS |
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
|
| CONSTRUCTION |
Aluminum Alloy
|
| WEIGHT |
4.03 lbs (without body cap and CFexpress card)
|
| DIMENSIONS |
6" x 4.25" x 4.25" (L x W x H)
|
| BATTERY TYPE |
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
|
| DC POWER INPUT |
11-17V via 6-pin DC-IN
|
| OPERATING TEMPERATURE |
0°C to 40°C (32°F to 104°F)
|
| STORAGE TEMPERATURE |
–20°C to 50°C (–4°F to 122°F)
|
| RELATIVE HUMIDITY |
0% to 85% non-condensing
|
| COLOR MANAGEMENT |
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
|
| AUDIO |
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
|
| REMOTE CONTROL |
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
|
| MONITOR OUTPUTS |
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
|
| MONITOR OPTIONS |
DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
|
| RED CONTROL |
Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
|
1. For more information on compatible accessories, go to red.com/third-party-accessories
* Tech specs reflect both current and projected information. Everything is subject to change.
* Tech specs reflect both current and projected information. Everything is subject to change.
Nicht an Lager (Nächste Verfügbarkeit ca. 02.06.2025)
Anton Bauer Titon Micro 150 V-Mount Battery
401.70 CHF
Nur noch 1 Stück verfügbar
SWIT Mino-S210 | USB-C, tiny size with 210Wh pocket mini battery, USB-A/USB-C/D-tap, V-Mount, also i
549.00 CHF
Nicht an Lager (Lieferbar in 2-3 Wochen)
KipperTie Strata PL-ND mount + ND filtration Clear, 0.3, 0.6, 0.9 ND
2'340.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)
Bebob 2-Channel V-Mount Simult. Charger w. 75W DC-Out
336.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)
OCTAMAS gear SC Bottom Interface Plate Power I/O RED V-RAPTOR / Komodo
628.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)
OCTAMAS gear SC Bottom Interface Plate RED V-RAPTOR / Komodo
248.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)

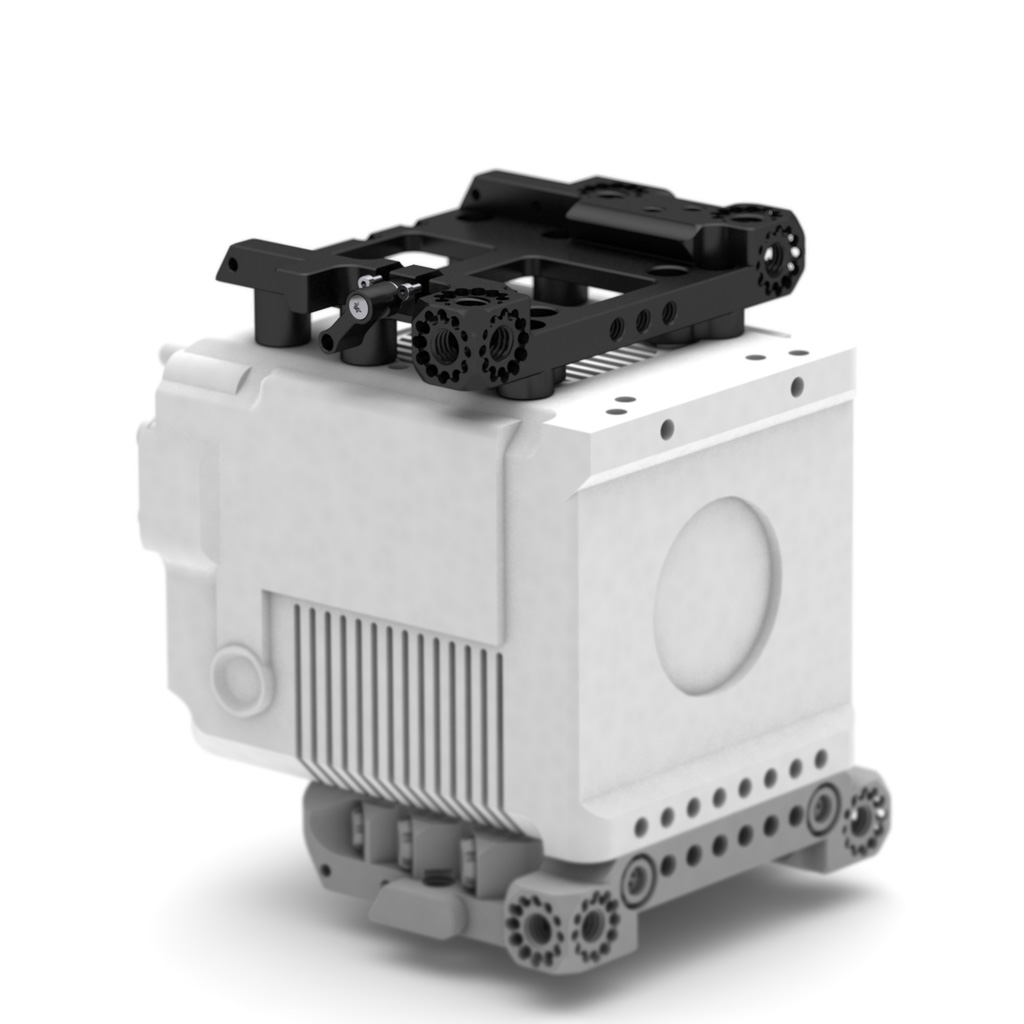

OCTAMAS gear SC Top Interface Plate RED V-RAPTOR
228.00 CHF
Nur noch 1 Stück verfügbar

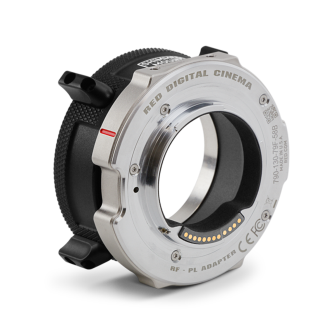

RED® V-RAPTOR™ RF to PL w/ Electronic ND Filter Adapter Pack
3'150.00 CHF
Nur noch 1 Stück verfügbar
RED® V-RAPTOR™ RF to PL w/ Electronic ND Filter Adapter Pack
3'150.00 CHF
Nicht an Lager (Nächste Verfügbarkeit ca. 19.05.2025)

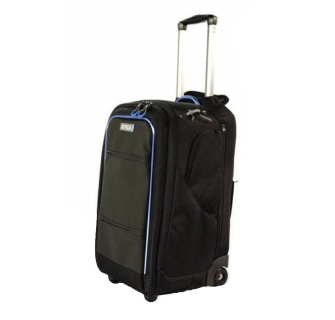

Orca Trolley Video Bag - 6
348.00 CHFstatt 435.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)

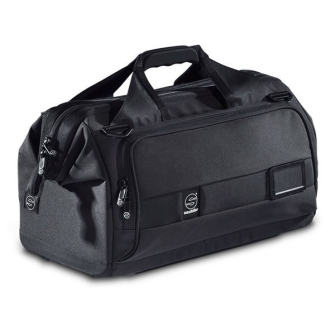

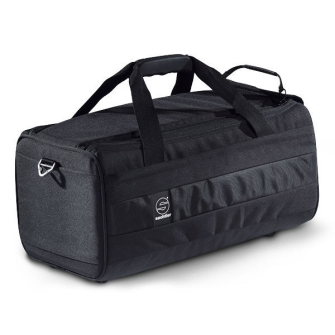

Sachtler Sachtler Camporter - large
189.60 CHFstatt 237.00 CHF
Nicht an Lager (Verfügbarkeit unbekannt)

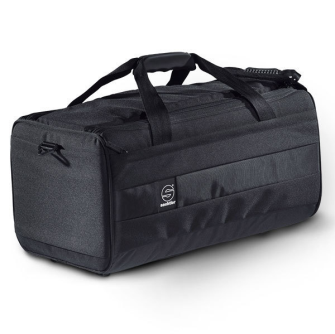

Sachtler Sachtler Camporter - medium
168.00 CHFstatt 210.00 CHF
Nicht an Lager (Nächste Verfügbarkeit ca. 05.05.2025)

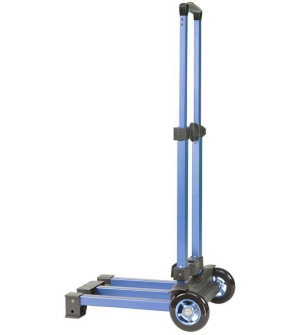

Sachtler Sachtler Snaplock Trolley System
