702 Touch
702 Touch702 Touch702 TouchSmallHD 702 TouchSmallHD 702 Touch

702 Touch

1'599.00 CHF
1'722.10 CHF inkl. 7.7% MwSt
Ruggedly built SDI/HDMI touchscreen with 1500 nits brightness.
Artikel-Nr.
161.MON-702-TOUCH
Verfügbarkeit
geringer Bestand
SmallHD 702 Touch

Der 702 Touch ist ein absolutes Arbeitspferd für Vollzeit-Kreative. Er ist extrem langlebig und tageslichttauglich, ohne enorme Mengen an Strom zu verbrauchen, und er ist 100% DCI-P3 farbgenau. Mit flexiblen Signaloptionen und erstklassigen Softwaretools bietet der 702 Touch ultimative Vielseitigkeit.

Model: MON-702-Touch
Display: 7-inch, 1920X1200
Brightness: 1500 nits
HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI In, 1x 3G SDI In/Out
Audio: ⅛” Headphone Jack
Power: Barrel Power Input (10V-34V, 2A DC), Sony L Series Battery Bracket








EINFACH ATEMBERAUBENDES DISPLAY





Der 702 Touch ist die perfekte Mischung aus Helligkeit, Auflösung, Farbwiedergabe und Energieeffizienz. Ob im Studio oder bei voller Sonne, das Bild auf diesem 7-Zoll-Touchscreen-Monitor ist einfach schön.



FLEXIBLE SIGNAL- UND LEISTUNGSOPTIONEN



Mit zwei 3G SDI-Eingängen, HDMI/SDI-Cross-Conversion, DC-Netzeingang und Sony L-Serie Batteriehalterung (Gold und V-Mount verfügbar) ist der 702 Touch an jeden Arbeitsablauf anpassbar, ob gross oder klein.







DATENGESTEUERTES VERTRAUEN





Die SmallHD OS3-Software bietet Bedienern, ACs, DITs und Direktoren branchenführende Imaging-Tools und eine vereinfachte Benutzerführung. Passen Sie Scopes, Wellenformen und Falschfarben nach Ihren Wünschen an. Wenden Sie Echtzeit-3D-LUTs schnell und einfach an. Mit diesem leistungsstarken, datengesteuerten Werkzeugsatz sparen Sie Zeit und Sicherheit beim Erstellen.







Display

Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920x1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Brightness 1500 Nits
Contrast 1000:1
Color Gamut 100% DCI-P3 Coverage
Color Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle

Controls

Primary Control Interface Touch Screen
Record/Capture Image Capture Tool

Power

Connector Type Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Consumption 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included L-Series standard (V Mount or Gold Mount optional accessories)
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Height 4.67" (11.86cm)
Width 1.32" (3.35cm)
Depth/Length 7.09" (18.01cm)
Weight (Item Only without battery) 18.9oz (535.81g)
Weight (Packaged) 26oz (737.09g)
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Software

Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel

Hawk-Woods LR-08 - Power-con (male) - 45cm - NPF dummy battery - Small HD only

Hedbox RP-NPF1000 | SUPER HIGH CAPACITY Li-Ion Battery 77Wh / 10400mAh, Compatible with Sony DCR-VX2
Hedbox RP-NPF770 | Li-Ion Battery 4400mAh, Compatible with Sony NP-F770 and, DCR-VX2100, DSR-PD150,
Hedbox RP-NPF970 | Li-Ion Battery 6600mAh, Compatible with Sony NP-F970 and, DCR-VX2100, DSR-PD150,

SmallRig Cage with Sun Hood for SmallHD 702 Touch Monitor CMS2684

Hedbox RP-DC50 | Dual Digital LCD Battery Charger - Changeable Battery plates need to be order separ

Orca Hard Shell Monitor (7") Bag / case with
integrated hood - 22x15x25cm - 1,2 kg

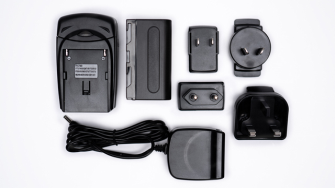

SmallHD L-Series Battery Kit with Interchangeable AC Plugs
