SmallRig V-Mount Battery Mount Plate Kit (Advanced) 4063B
139.00 CHF150.25 CHF incl.8.1% VAT
Item no.
522.4063B
Item no.
24 Monate
Availability
low availability
"SmallRig Advanced Compact V-Mount Battery Mounting System 4063
III. Key Features:
Compact, lightweight, all-in-one mounting solution to V-mount battery
Supports different cameras in various scenarios
Tool-less installation and quick release
Arca-Swiss quick release plate for quick switch between handheld shot and tripod shot

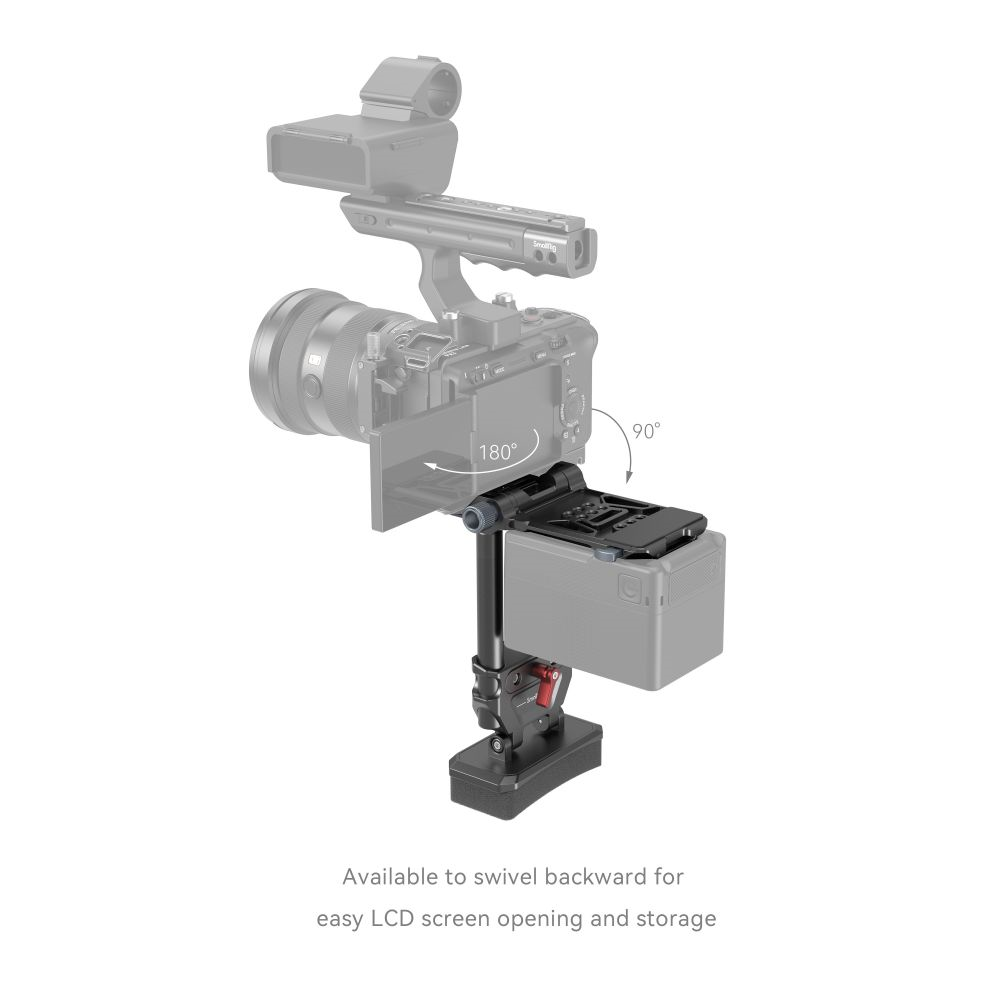

90° backward rotation gives easy access to flip screen
Chest pad for more stability and less burden
Folded down to store or carry around

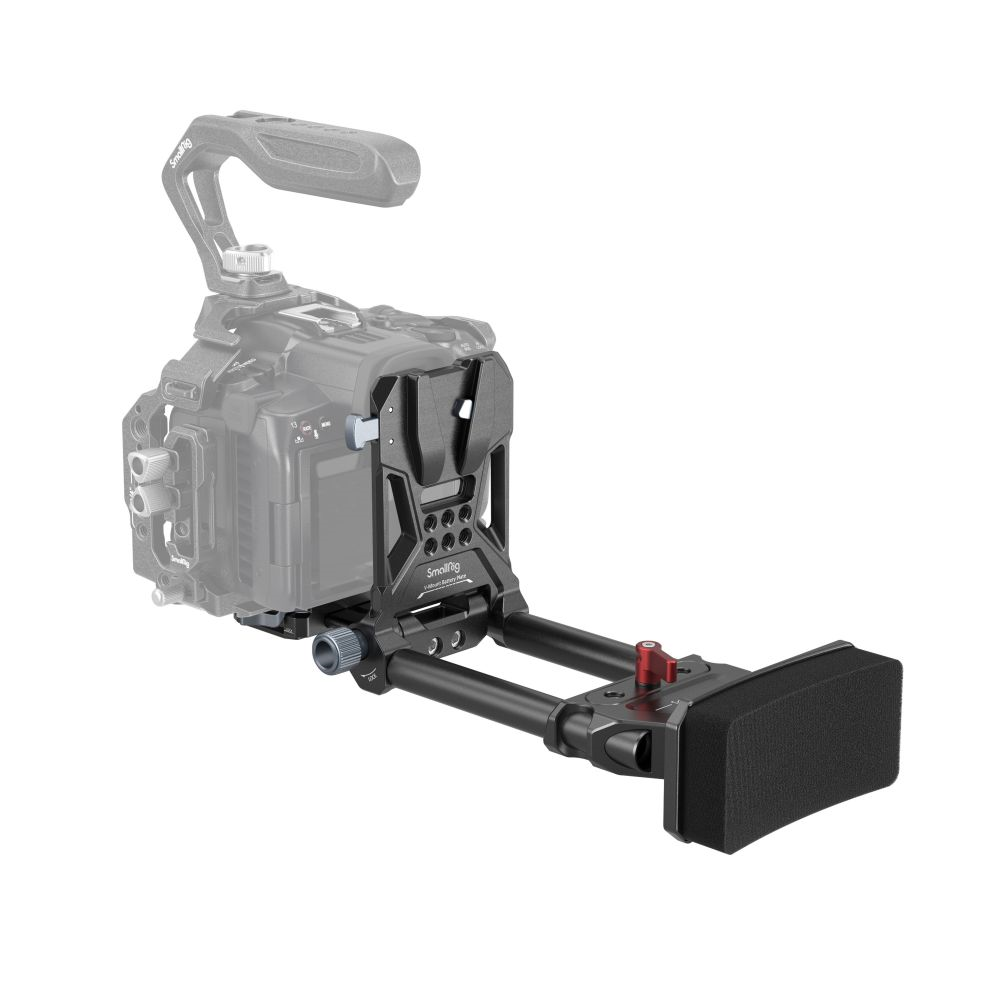

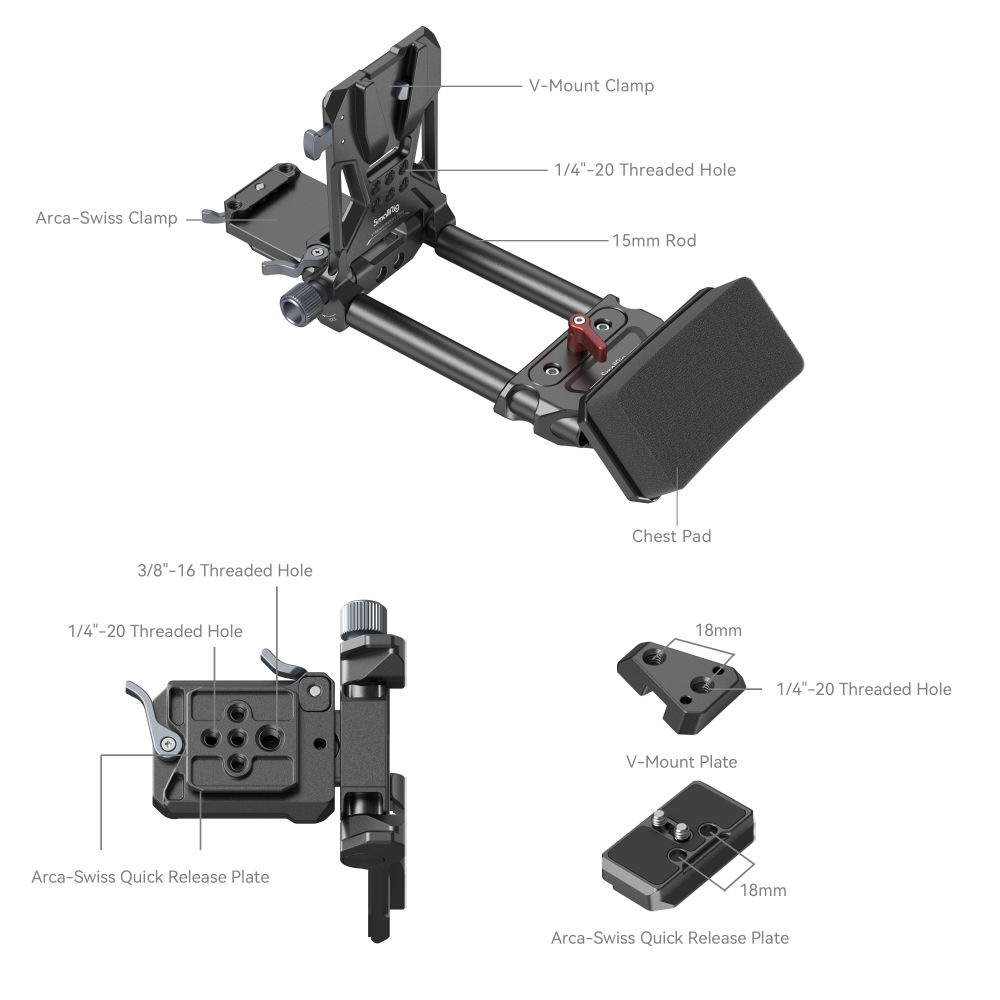

SmallRig Advanced Compact V-Mount Battery Mounting System 4063 represents a compact, lightweight, convenient, all-in-one mounting solution for V-mount battery. The kit consists of a V-mount battery plate, an Arca-type quick-release plate, a V-mount plate, 15mm rods, and a chest pad. Particularly, the baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes, which is helped by tool-less installation and adjustment, quick and time-saving. Beyond any cage with a built-in Arca-type plate, it can directly support the camera and DJI RS series gimbals via the Arca Swiss quick-release plate. The V-mount battery plate, featuring 1/4""-20 threaded holes and a V-mount plate, provides more power supply solutions by attaching NP-F Battery Adapter Plate Professional Edition 3168 and Holder for Portable Power Banks BUB2336. Switching between handheld shot and tripod shot is also easier, thanks to the bottom Arca-type plate. The 90-degree rotatable V-mount battery plate leaves enough room for flip screen, with pivot dampening preventing your device from falling. It can be folded down for increased compactness and portability. Besides, at the end of the 15mm rods, there is a chest pad to ensure the stability of shooting handheld.
Note:Load capacity: 5kg
IV. Compatibility:

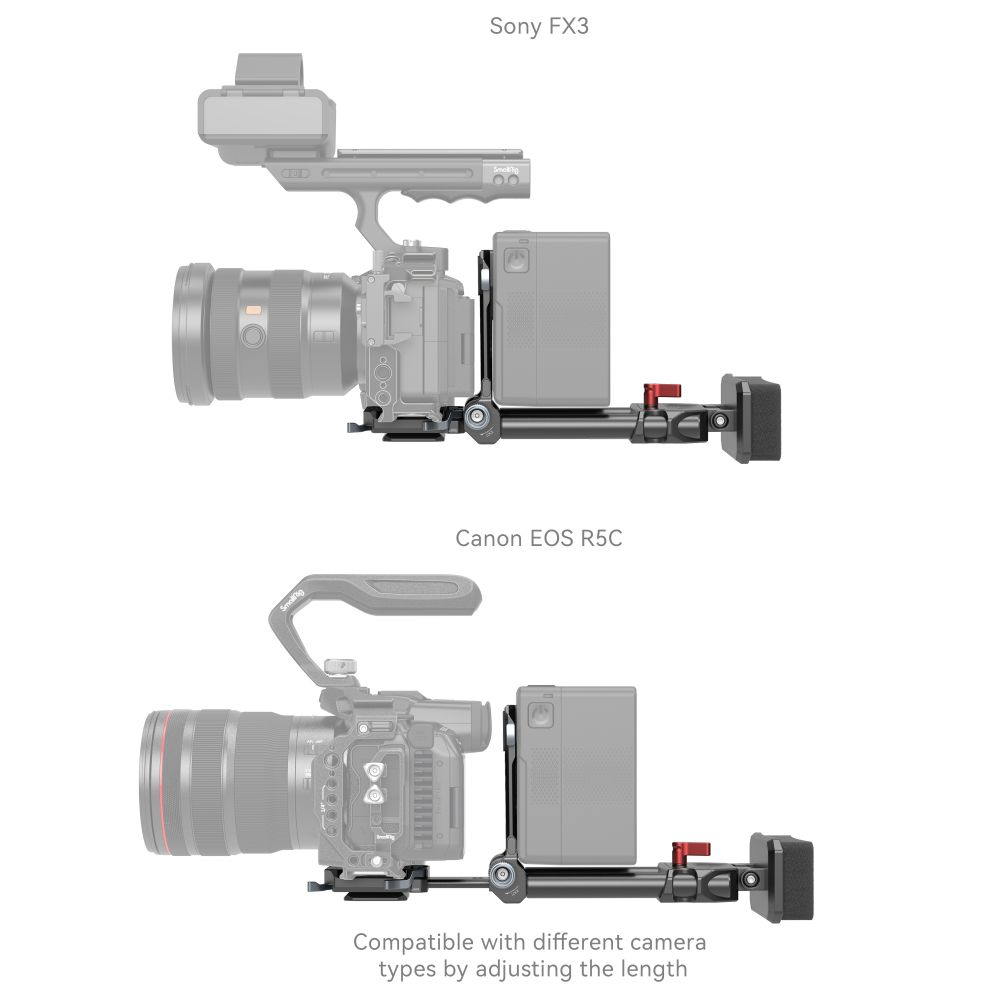

Mirrorless / DSLR cameras less than 111mm thick, for example:
Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
Canon EOS R5 C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

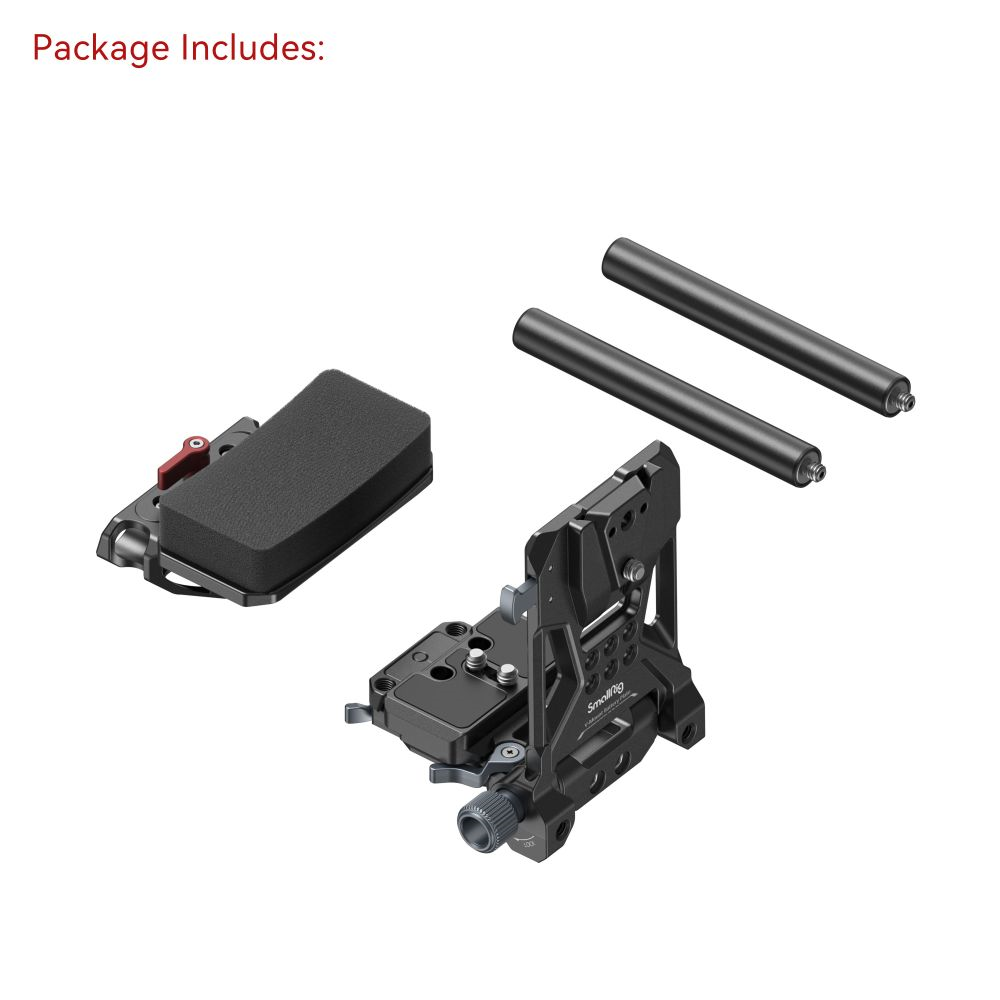

V. In the Box:
V-mount Battery Plate x 1
Arca-Swiss Quick Release Plate x 1
V-mount Plate x 1
15mm Rod x 2
Chest Pad x 1
VI. Specifications

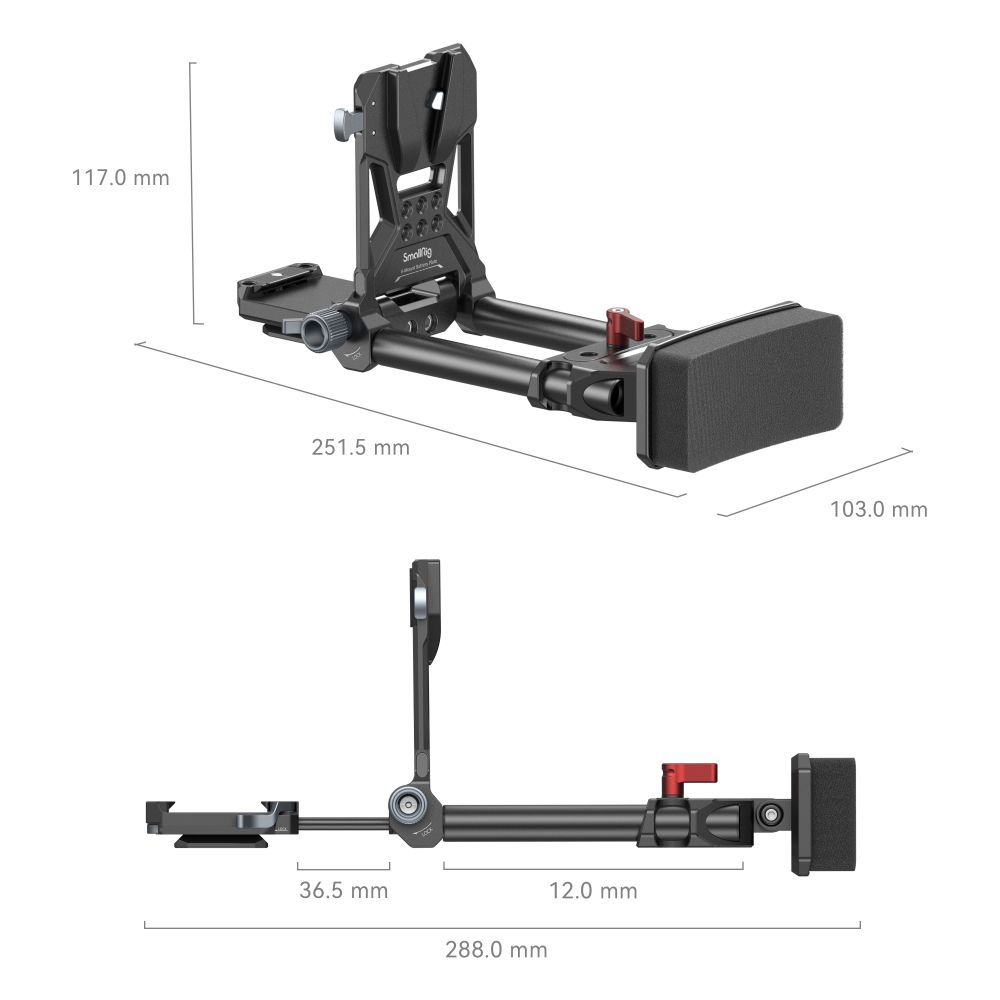

Product Dimensions: 251.5 x 92 x 117mm
Package Dimensions: 197 x 140 x 52mm
Product Weight: 486±5g
Package Weight: 582g±5g
Material(s): Aluminum Alloy, Stainless Steel, EPDM"
